4K HDMI Cable Gold Connectors Premium Braided Nylon HDMI is the first and only digital interface to combine uncompressed high-definition video, multi-channel audio and intelligent format and command data in a single digital interface. Cable HDMI offers significant advantages over analog A/V connections, including the ability to transmit uncompressed digital video and audio content. With these capabilities, HDMI is, and will be the evolving interconnection standard for the future of consumer electronics.
FEATURES
(1) This HDMI Cable is suitable for use in HDTV, home theater, DVD player, projector, PS3, and other HDMI devices
(2) 24k gold-plated connector resists corrosion and ensures an optimum connection for maximum signal transfer
(3) High pure OFC conductor for maximum conductivity and reliability
(4) High density triple shielding for maximum rejection of EMI and RFI
(5) Compatible with multiple audio formats from stereo to multi-channel sound
(6) Transfer digital audio and video signals at warp speed of 10.2 gigabytes per second
Specifications:
(1) 2×HDMI 19PIN, male connectors, version 1.4&2.0
(2) Gold plated connectors
(3) Nylon protection layer
(4) Digital transfers at rates up to 10.2Gbps
(5) High purity OFC conductor
(6) All materials are RoHS complaint
(7) Cable from 36wg to 22awg,cable OD from 5.5mm to 10.5mm
(8) Conductor: BC<bare copper>, TC< Tin copper>, SC< Silver Copper>
(9) Single-stranded or stranded
Product High Speed HDMI Cable with Ethernet
Connector 24K Gold-plated
Length 1-10meter
Speed Super high 18Gbps
Working Temperature -20 to 80 degree
Cable Conductor 30-24AWG
Material Tinned copper,bare copper or slied copper
Differential impedance 100+/-15ohm
Far-end Crosstalk -26db@300k-5GHz
Attenuation 5dB@300KHZ-825MHz
Intra-pair skew 11ps(max)
Inter-pair skew 1780(max)
Differential Delay 5.05ns/m(max)
Shape Round HDMI Cable
Spec. HDMI Malet o Male
Applications PPTV,LCD,HDTV,RPTV,DVD, etc.

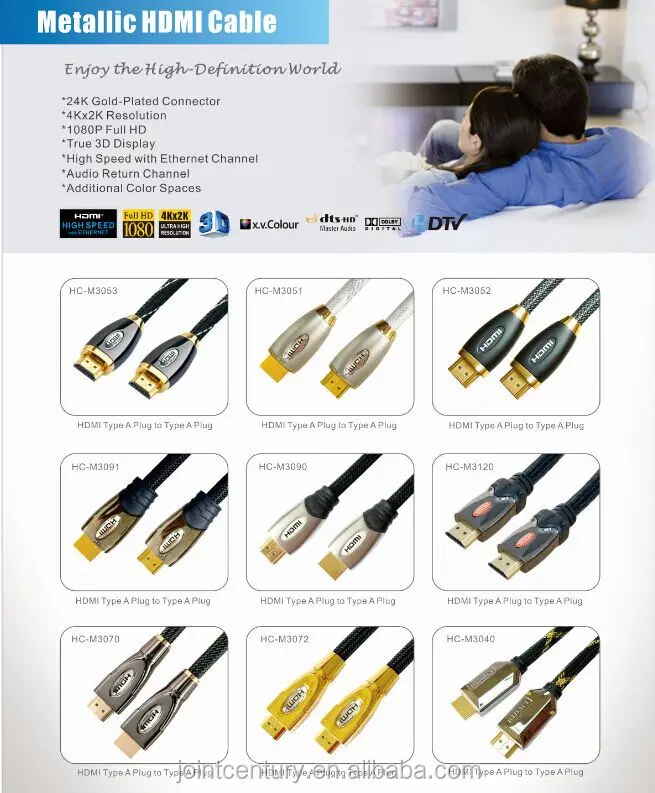

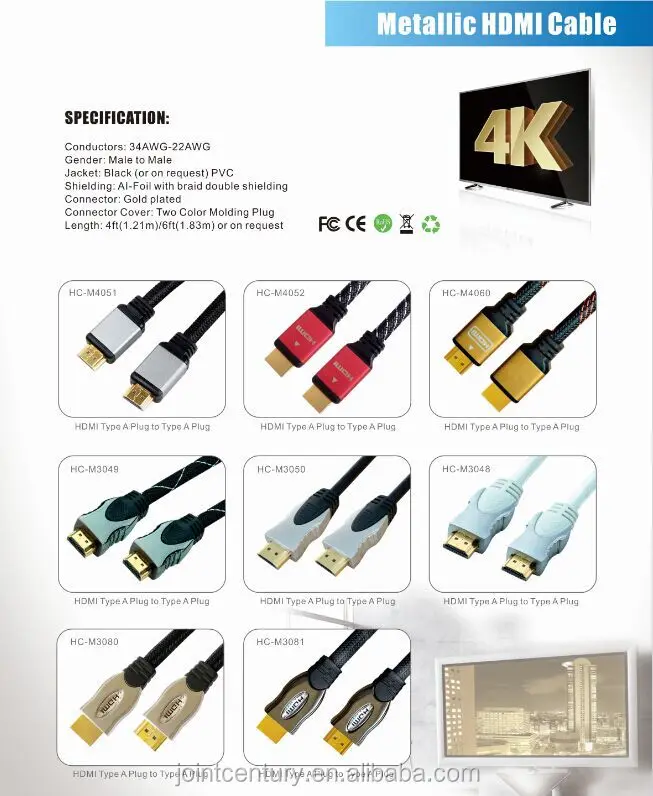

Detailed Images

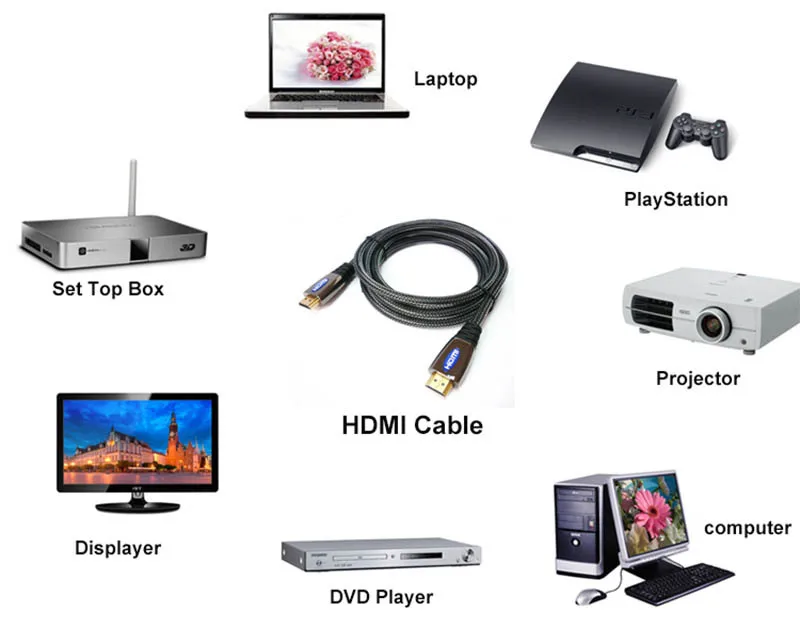

HDMI Application

Packaging & ShippingOptional Package:
Double Blister, Slide Card Blister, PE Bag, OPP Bag, Gift box or on request
(If you were based on a certain order quantity, we can provide the design packing style.)

Payment terms:
By T/T, Western Union, Paypal, ESCREW etc
Delivery time:
2-3 working days after payment for sample order
7-15 working days after payment for mass order
