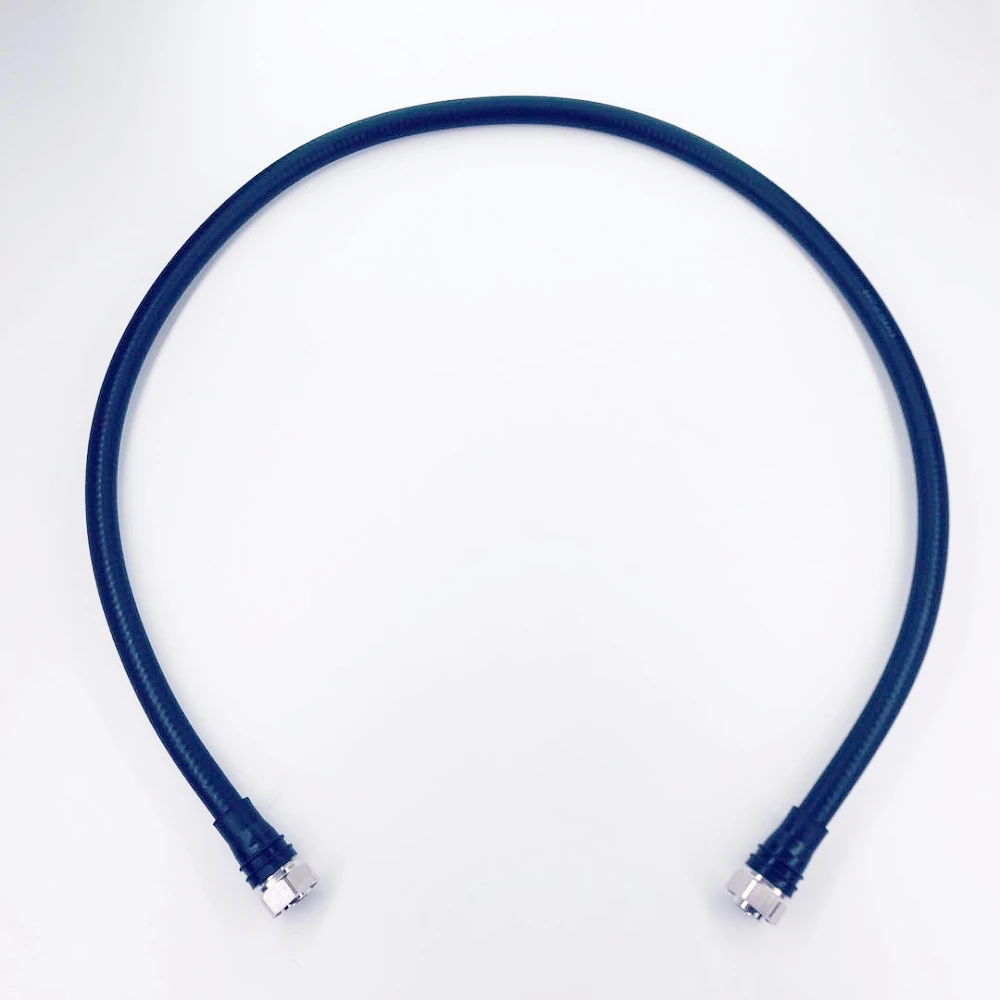

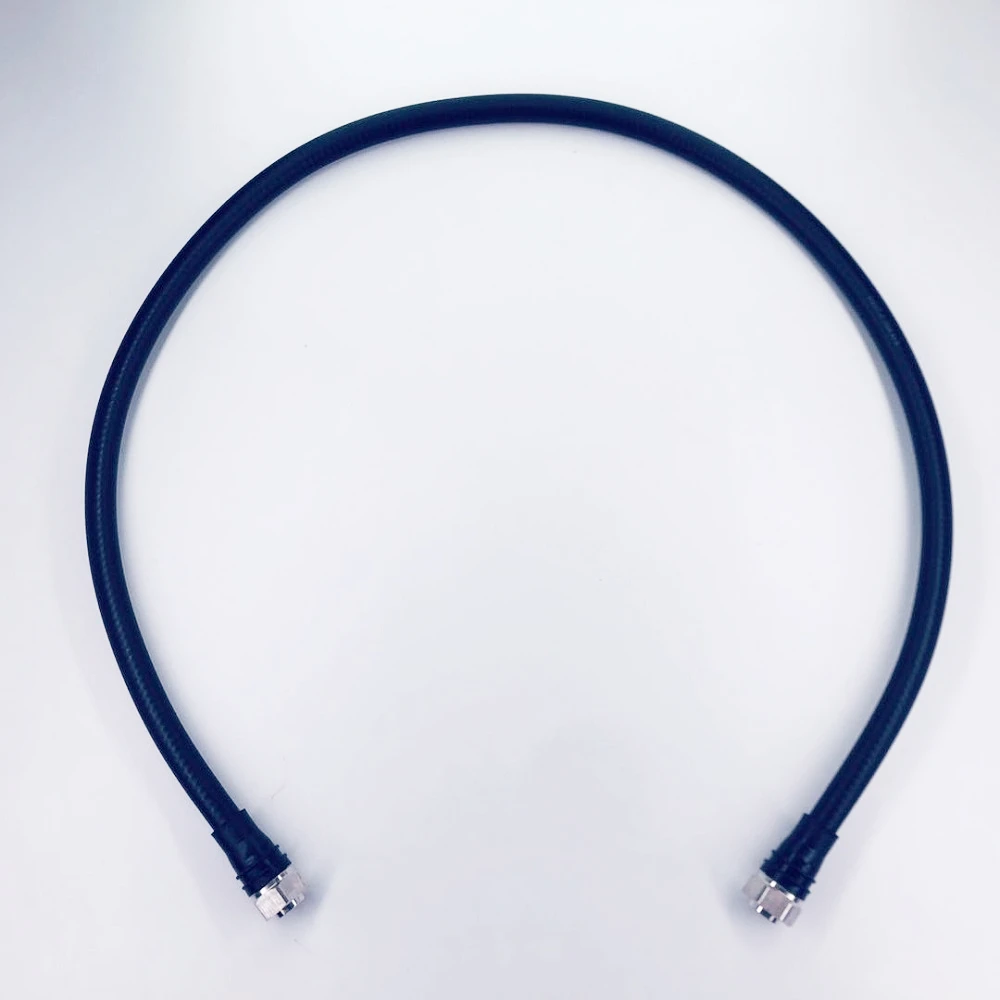

4.3-10 RF jumper cable,coaxial jumper cable,communication feeder cable
Jumper Cable RF-Combination connectors of different connector series can be assembled as either straight or angle versions by using the corresponding clamps.With only one combination connector and the different cable clamps,a variety of connectors can be produced allowing a reduction in stock-levels.The technical specifications can be obtained from the descriptions in the respective chapters for each series.
Note: connector and cable type,length an be changed based on customers requirements.
Features:
1) RF coaxial cable assemblies
2) RF connector with Andrew / LMR / RG cable series
3) Connector type: N, L29 (7/16), SMA, SMB, MCX and others
4) Cable type: FSJ1-50A (1/4), FSJ2-50 (3/8"), LDF4-50A (1/2"),
LDF5-50A (7/8"), VXL5-50 (7/8"), LMR100, LMR195, LMR200, LMR240,
LMR400, LMR500 and LMR600
5) OEM / ODM orders are welcome

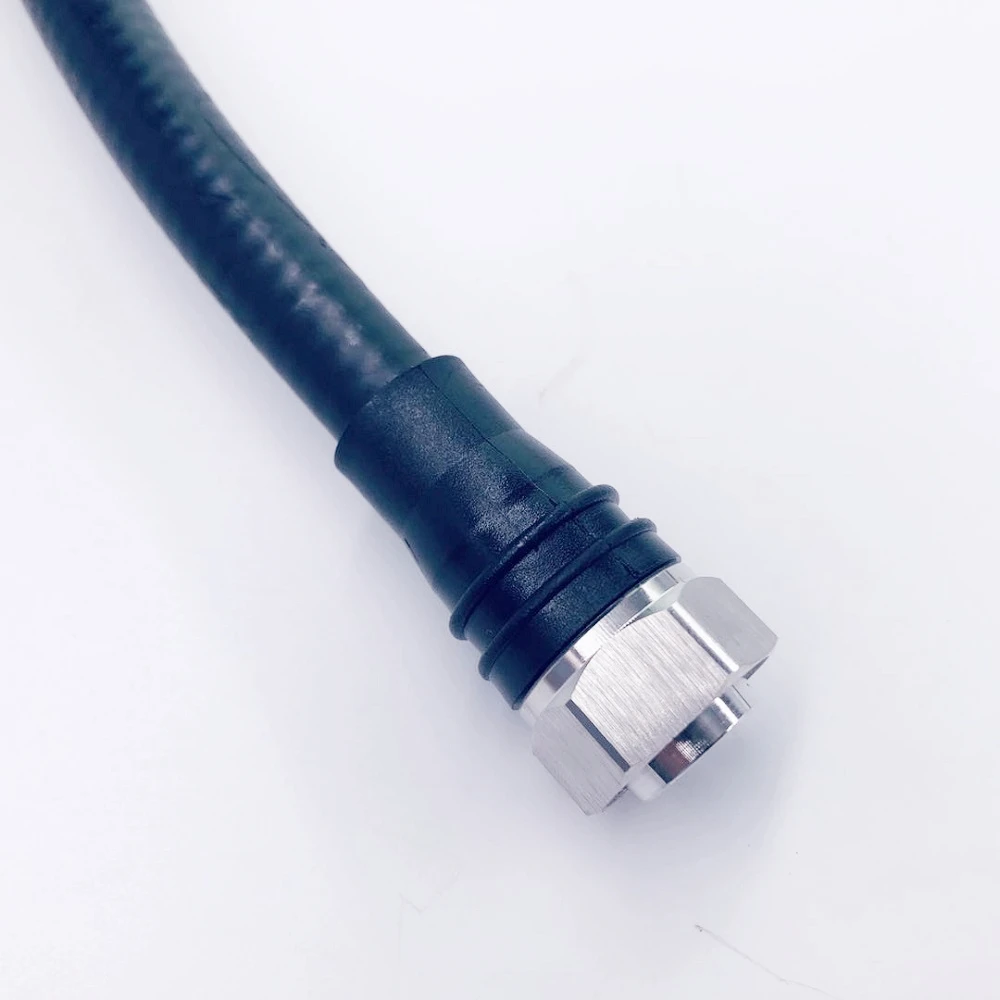

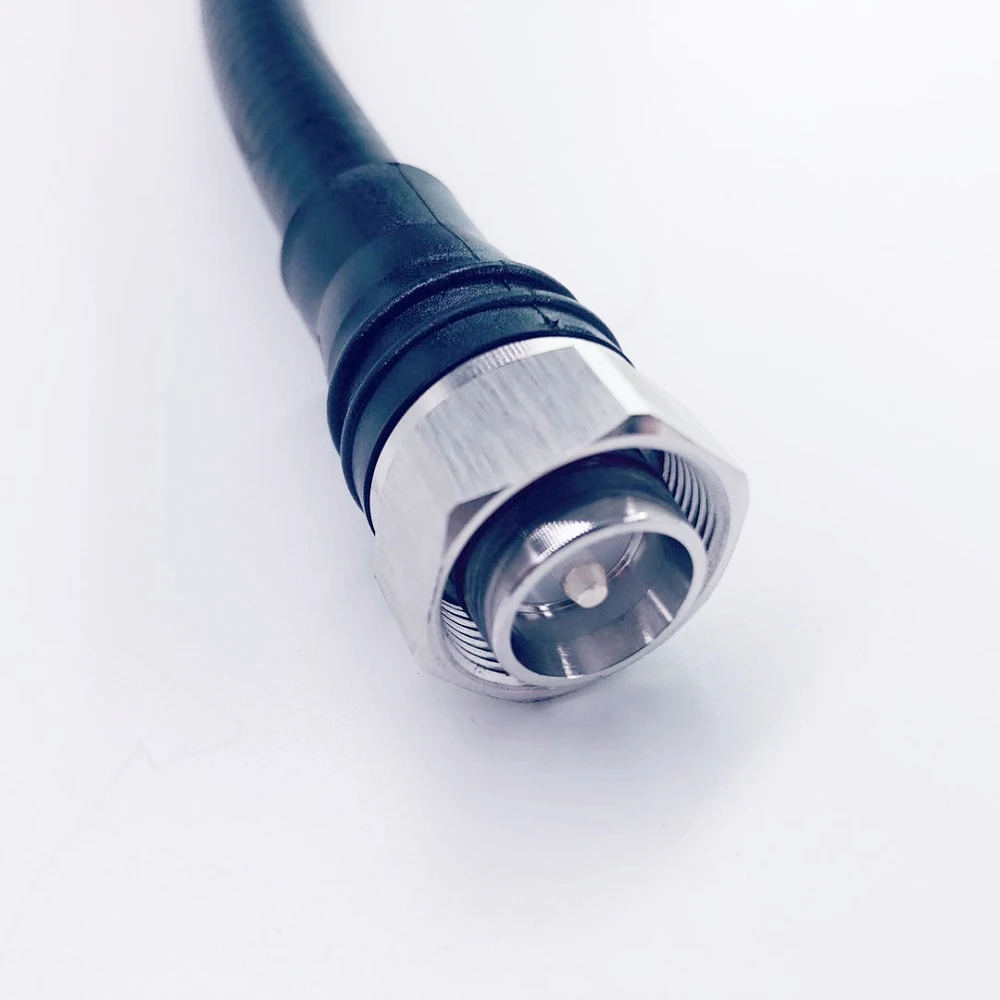

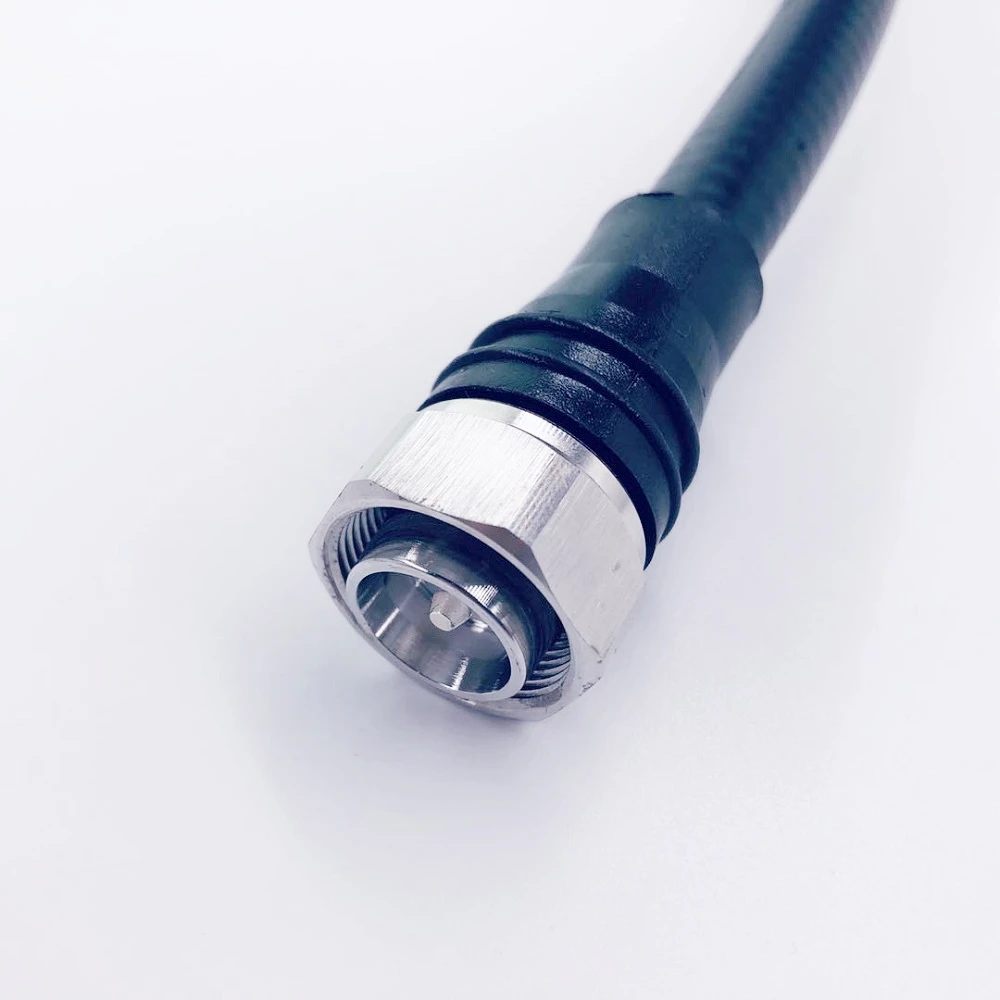

4.3-10 coaxial jumper cable





4.3-10 coaxial jumper cable
Interface
According to
IEC 60169
Electrical
Characteristic Impedance
50 ohm
Frequency Range
DC-6GHz
VSWR
VSWR≤1.10(3.0G)
PIM3
≤-160dBc
Dielectric Withstanding Voltage
>2500V RMS,50hz,at sea level
Contact Resistance
Center Contact ≤1mΩ Outer Contact ≤1mΩ
Dielectric Resistance
>5000MΩ
Mechanical
Durability
Mating cycles >500cycles
Material and plating
Material
plating
Body
Brass
Tri-Alloy
Insulator
PTFE
-
Center conductor
Tin Phosphor bronze
Ag
Gasket
SIlicone rubber
-
Other
Brass
Ni
Environmental
Temperature Range
-40~+85
Rosh-compliance
Full ROHS compliance
