1. DESCRIPTIONS

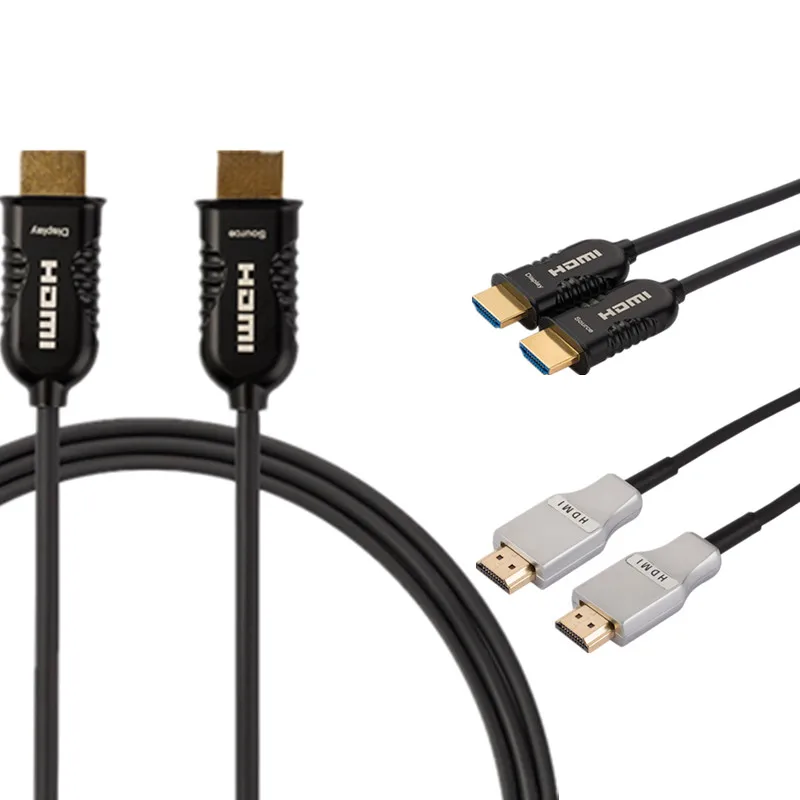

Our HDMI Active Hybrid Cable is the most competitive long reach HDMI interconnection solution on the market. It supports HDMI Maximum Data Rate 6Gbps with light weight, flexible and ultra-small long-term bending radius (52mm) hybrid cable. With ouradvanced optical engine embedded. This HDMI Hybrid Cable provides full HDMI signal integrity, support up to 100m maximum length, plug and play. No external power required.
2. KEY FEATURES
Up to 100m Maximum Length.(Custom Length Available)
Low Power Consumption: 250mW (max). (Power Required)
Plug and Play
Compatible with HDMI 2.0 standard.
Support HDCP
Self-detecting function for EDID information
No loss of signal – delivering crystal clear digital images instantly.
Supports computer resolutions to 1080P and 4K2K(60P).
Hybrid optical cable with fiber and copper wire

3. Applications
Digital Signage
LED signboards in streets and in stadiums
Medical Imaging Equipment Airplane On-board Video System
Home Theater
Blue-ray, 3D video, Projector, Set-up box, DVR, Game Consoles and Computer
TV Broadcast Station
Conference Room Video Equipment
Security system
Specifications
Item
Description
Units
Transmitter (Source)
Receiver (Sink)
HDCP & DDC
HDCP 2.0 Fully Support bi-directional EDID and HDCP communication
Video Bandwidth
6 Gbps/x3Channel (max)+ Clock.
Supported
Resolution & Distance
PC: WUXGA 1920 x 1200 up to 100 meters,HDTV : 480p, 720p, 1080i and 1080p deep color, 4K(60P), 3DFull HD 1920 x 1080 up to 100 meters
O/E Converter
4 channel 850 nm VCSEL array
4 CH GaAs PD array
Connector Type
HDMI type A
Cable Type
Hybrid type with OM3 fiber and copper wire
Cable Length
15m/20m/30m/40m/50m/60m/70m/80m/90m/100m (with +/-30cm tolerance) Custom length available.
Cable Outer Diameter
4.2mm
Jacket Outer Material
PVC/TPU(Custom)
Cable Weight TBD
Cable Weight TBD
Cable Color TBD
Cable Color TBD
Differential Input
100 ohm (typ)
Power Consumption
250mW (max)
Power Supply
Non external power required
4. Ordering Information
Part Number
Description
TLD-AOC01-010
HDMI AOC,V2.0,4K 2K/60P,Support EDID/HDCP,Length 10m
TLD-AOC01-015
HDMI AOC,V2.0,4K 2K/60P,Support EDID/HDCP,Length 15m
TLD-AOC01-020
HDMI AOC,V2.0,4K 2K/60P,Support EDID/HDCP,Length 20m
TLD-AOC01-030
HDMI AOC,V2.0,4K 2K/60P,Support EDID/HDCP,Length 30m
TLD-AOC01-040
HDMI AOC,V2.0,4K 2K/60P,Support EDID/HDCP,Length 40m
TLD-AOC01-050
HDMI AOC,V2.0,4K 2K/60P,Support EDID/HDCP,Length 50m
TLD-AOC01-060
HDMI AOC,V2.0,4K 2K/60P,Support EDID/HDCP,Length 60m
TLD-AOC01-070
HDMI AOC,V2.0,4K 2K/60P,Support EDID/HDCP,Length 70m
TLD-AOC01-080
HDMI AOC,V2.0,4K 2K/60P,Support EDID/HDCP,Length 80m
TLD-AOC01-090
HDMI AOC,V2.0,4K 2K/60P,Support EDID/HDCP,Length 90m
TLD-AOC01-100
HDMI AOC,V2.0,4K 2K/60P,Support EDID/HDCP,Length 100m
