300V RE-2X(st)HSWA EN 50288-7 XLPE Insulated kvvp instrument cableEN 50288-7 Instrumentation Cables
XLPE Insulated, LSZH Sheathed, Individual and Overall Screened Instrumentation Cables (Multipair)
RE-2X(St)H Pimf 90°C / 300Vkvvp instrument cable ApplicationsThe unarmoured LSZH sheathed cables are generally use for indoor installation and suitable for wet and damp areas. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.

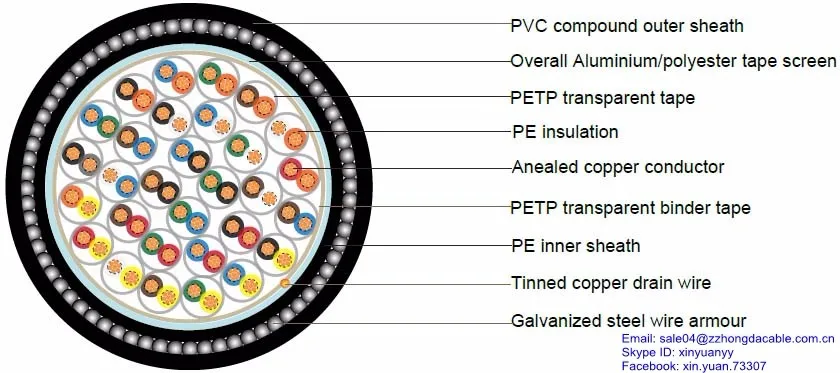

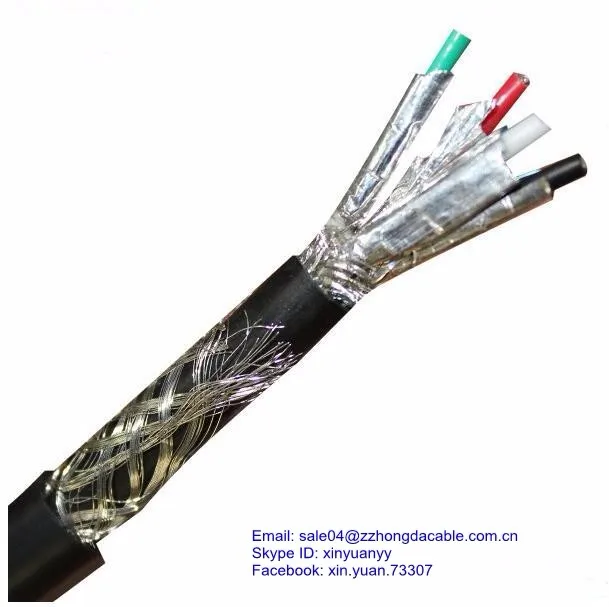

kvvp instrument cable Construction
Conductor Annealed or tinned copper, sizes: 0.5mm^2 and 0.75mm^2 mulitistranded(Class 5), 0.5 mm^2, 1.0 mm^2 solid(Class 1), 1.5mm^2 or 2.5mm^2 multistranded(Class 2) to BS6360
Insulation XLPE (Cross Linked Polyethylene), or PE (optional)
Pairing Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
Colour code See technical information
Binder tape PETP transparent tape
Collective screen Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm^2
Inner Sheath LSOH(Low Smoke Zero Halogen) sheath

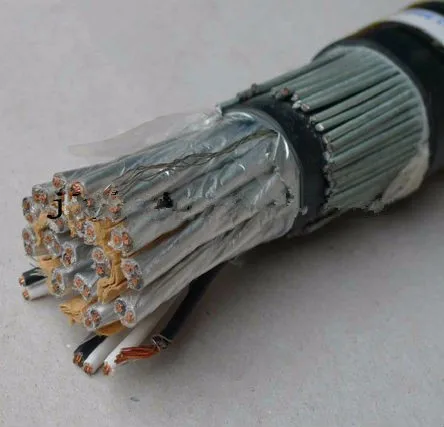

Amour Galvanized steel wire armour
Outer sheath LSOH(Low Smoke Zero Halogen) sheath Flame retardant to IEC60332-3-22 Halogen free to IEC60754-1 Low smoke emission to IEC61034-1-2
Sheath colour Black or blue
FIRE PERFORMANCEFlame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2);
CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1;
CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2;
CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2;
CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases NES 02-713; NF C 20-454
Sunlight Resistance UL 1581 section 1200
Oil Resistance ICEA S-73-532**
Note: Asterisk * denotes superseded standard, ** denotes Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation, *** denotes optional.
VOLTAGE RATING300V
Physical AND THERMAL PROPERTIESTemperature Range During Operation (Fixed State): -30°C – +90°C
Temperature Range During Installation (Mobile State): -5°C – +50°C
Minimum Bending Radius: 7.5 X Overall Diameter

kvvp instrument cable ParameterCaledonian Cable Code
RE-2X(St)H PiMF
No. of Pairs x2xCross Section Nominal Insulation Thickness Nominal Outer Sheath Thickness Nominal Overall Diameter Approx. Weight
No.x2xmm2 mm mm mm kg/km
0.5mm2, Multipair
RE-2X(St)H PiMF 2P0.5 2x2x0.5 0.35 0.9 8.7 85
RE-2X(St)H PiMF 4P0.5 4x2x0.5 0.35 1.0 10.2 120
RE-2X(St)H PiMF 5P0.5 5x2x0.5 0.35 1.0 11.2 145
RE-2X(St)H PiMF 6P0.5 6x2x0.5 0.35 1.0 12.1 170
RE-2X(St)H PiMF 8P0.5 8x2x0.5 0.35 1.1 13.1 214
RE-2X(St)H PiMF 10P0.5 10x2x0.5 0.35 1.2 15.1 265
RE-2X(St)H PiMF 12P0.5 12x2x0.5 0.35 1.2 15.7 286
RE-2X(St)H PiMF 16P0.5 16x2x0.5 0.35 1.2 17.8 380
RE-2X(St)H PiMF 20P0.5 20x2x0.5 0.35 1.3 19.7 475
RE-2X(St)H PiMF 24P0.5 24x2x0.5 0.35 1.4 21.5 561
0.75mm2, Multipair
RE-2X(St)H PiMF 2P0.75 2x2x0.75 0.38 1.0 9.7 101
RE-2X(St)H PiMF 4P0.75 3x2x0.75 0.38 1.0 11.2 159
RE-2X(St)H PiMF 5P0.75 4x2x0.75 0.38 1.1 12.5 183
RE-2X(St)H PiMF 6P0.75 5x2x0.75 0.38 1.1 13.6 215
RE-2X(St)H PiMF 8P0.75 8x2x0.75 0.38 1.1 14.4 272
RE-2X(St)H PiMF 10P0.75 10x2x0.75 0.38 1.2 16.6 333
RE-2X(St)H PiMF 12P0.75 12x2x0.75 0.38 1.2 17.4 383
RE-2X(St)H PiMF 16P0.75 16x2x0.75 0.38 1.3 19.8 492
RE-2X(St)H PiMF 20P0.75 20x2x0.75 0.38 1.4 22.0 603
RE-2X(St)H PiMF 24P0.75 24x2x0.75 0.38 1.5 24.0 704
1.0mm2, Multipair
RE-2X(St)H PiMF 2P1.0 2x2x1.0 0.4 1.0 10.4 112
RE-2X(St)H PiMF 4P1.0 3x2x1.0 0.4 1.0 12.1 179
RE-2X(St)H PiMF 5P1.0 4x2x1.0 0.4 1.1 13.5 220
RE-2X(St)H PiMF 6P1.0 5x2x1.0 0.4 1.1 14.7 256
RE-2X(St)H PiMF 8P1.0 8x2x1.0 0.4 1.2 15.8 323
RE-2X(St)H PiMF 10P1.0 10x2x1.0 0.4 1.2 18.0 401
RE-2X(St)H PiMF 12P1.0 12x2x1.0 0.4 1.3 19.0 454
RE-2X(St)H PiMF 16P1.0 16x2x1.0 0.4 1.3 21.5 601
RE-2X(St)H PiMF 20P1.0 20x2x1.0 0.4 1.4 23.9 719
RE-2X(St)H PiMF 24P1.0 24x2x1.0 0.4 1.5 26.1 884
1.3mm2, Multipair
RE-2X(St)H PiMF 2P1.3 2x2x1.3 0.45 1.0 11.4 153
RE-2X(St)H PiMF 4P1.3 3x2x1.3 0.45 1.1 13.4 208
RE-2X(St)H PiMF 5P1.3 4x2x1.3 0.45 1.1 14.8 263
RE-2X(St)H PiMF 6P1.3 5x2x1.3 0.45 1.2 16.3 318
RE-2X(St)H PiMF 8P1.3 8x2x1.3 0.45 1.3 17.6 406
RE-2X(St)H PiMF 10P1.3 10x2x1.3 0.45 1.3 20.0 501
RE-2X(St)H PiMF 12P1.3 12x2x1.3 0.45 1.4 21.1 552
RE-2X(St)H PiMF 16P1.3 16x2x1.3 0.45 1.5 24.1 728
RE-2X(St)H PiMF 20P1.3 20x2x1.3 0.45 1.6 26.8 892
RE-2X(St)H PiMF 24P1.3 24x2x1.3 0.45 1.7 29.2 1067
1.5mm2, Multipair
RE-2X(St)H PiMF 2P1.5 2x2x1.5 0.45 1.0 11.8 164
RE-2X(St)H PiMF 4P1.5 3x2x1.5 0.45 1.1 13.9 235
RE-2X(St)H PiMF 5P1.5 4x2x1.5 0.45 1.2 15.5 289
RE-2X(St)H PiMF 6P1.5 5x2x1.5 0.45 1.2 16.9 366
RE-2X(St)H PiMF 8P1.5 8x2x1.5 0.45 1.3 18.2 446
RE-2X(St)H PiMF 10P1.5 10x2x1.5 0.45 1.4 21.0 565
RE-2X(St)H PiMF 12P1.5 12x2x1.5 0.45 1.4 21.9 637
RE-2X(St)H PiMF 16P1.5 16x2x1.5 0.45 1.5 25.1 828
RE-2X(St)H PiMF 20P1.5 20x2x1.5 0.45 1.6 27.8 1024
RE-2X(St)H PiMF 24P1.5 24x2x1.5 0.45 1.7 30.4 1219
Note : Other conductor sizes & core configurations are available upon request
Electrical PROPERTIESConductor Area Size mm 2 0.5 0.75 1.0 1.3 1.5
Insulation thickness (nominal) mm 0.4 0.4 0.4 0.45 0.45
Conductor resistance (20°C) Ω/km 36.7 25 18.5 14.2 12.3
Insulation resistance (20°C) MΩ.km(Min.) 5000
Mutual Capacitance (1 kHz) pF/m(Max.) 115
Inductance mH/km (Max.) 1
L / R (ratio) (max.) μH/Ω 25 25 25 40 40
Operating voltage Urms V 300
Test Voltage Core to Core V 1500
Core to Screen V 1500
