1 core Single Mode Figure 8 Type Ftth Fiber Optic Cable Price Per Meter
:
Model: GJYXCH

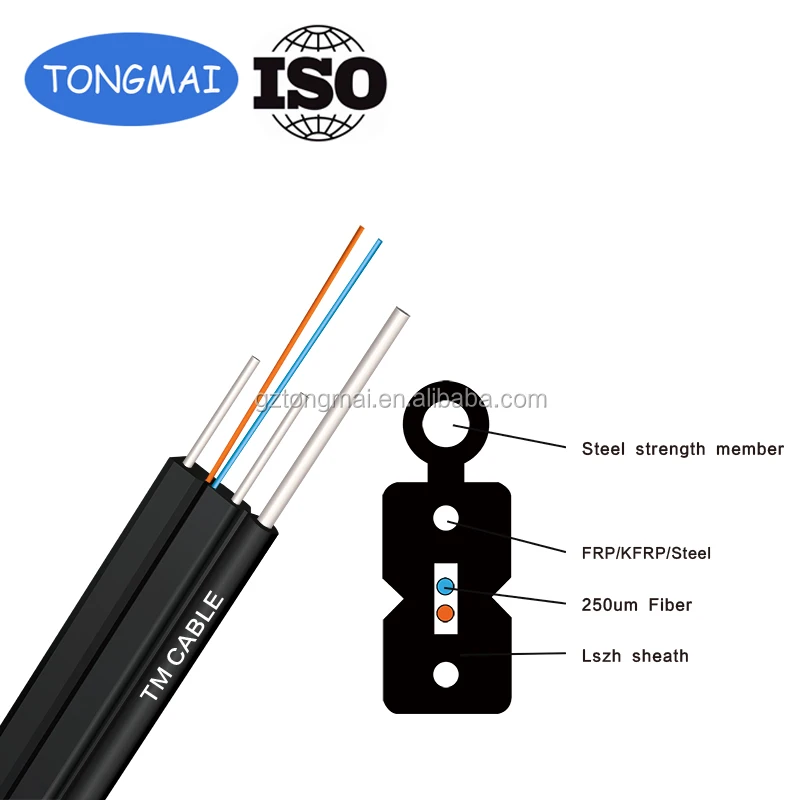

The optical fiber unit is positioned in the centre. Two parallelFiber Reinforced member steel wire are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.
Fiber count (core) Cable diametre (mm) Weight (kg/km) Tensile Strength Long/Short Term (N) Crush Resistance Long/Short Term (N) Bending Radius
Static/Dynamic
(mm)
1 (2.1±0.1)×(5.1±0.1) 21 1500/2500 500/1300 15/30
2 (2.1±0.1)×(5.1±0.1) 21 1500/2500 500/1300 15/30
4 (2.1±0.1)×(5.1±0.1) 21 1500/2500 500/1300 15/30
Features:
1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
2. Two parallel steel wries strength members ensure good performance of crush resistance to protect the fiber.
3. Simple structure, light weight and high practicability.
4. Low smoke, zero alogen and flame retardant sheath.
