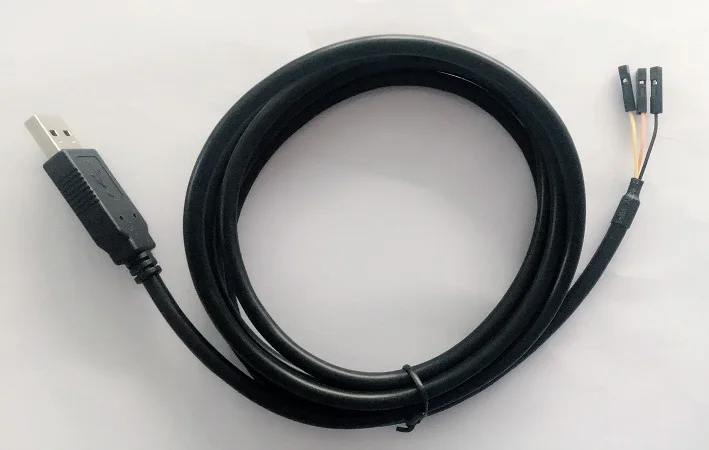

FTDI Chip USB to TTL Serial Cable for Rapsberry Pi, 3.3V, TTL-232R-RPI Compatible, Debug and Programming Cable
TTL-232R-RPI for Raspberry PiUSB to TTL Serial Cable - Debug Console Recovery Cable for Raspberry Pi
USB to TTL Serial Interface, USB 2.0 Full Speed Compatible, Internal EEPROM with User Writeable Area
USB to UART Cable with 3.3V TTL Logic Level and Raspberry Pi Compatible Flying Leads
TTL-232R-RPi is a USB to TTL level serial UART converter cables incorporating FT232RQ USB to Serial UART interface IC device which handles all the USB signalling and protocols. The TTL-232R-RPi is designed for use with the Raspberry Pi (RPi), an ultra low cost, Linux based miniaturised computer. The debug cable sits on the Rx/Tx of the RPi ARM processor UART which provides much more detail of whats happening within the RPi operating system. Connecting the debug cable to a PC and communicating with the RPi via a terminal emulator on a PC gives the user access to more detailed information from the Linux kernel during RPi start up, which appears on the Rx/TX lines of the UART, as well as being able to login and access the kernel itself from the PC.
Features:
Chipset
FT232RL
Product Name
TTL-232R-RPI
Product Type
UART Convert Cable
Standard Package
PE Bag
Category
Cable Assemblies
RoHS
Yes
Series
USB cables
Usage
USB to UART, Raspberry Pi (RPi)
Convert From (Adapter End)
USB - A, Plug
Convert To (Adapter End)
Single Pole, 3 Female Sockets
Length
3ft (1m)
Shielding
Unshielded
Cable
26AWG, OD 5.0mm

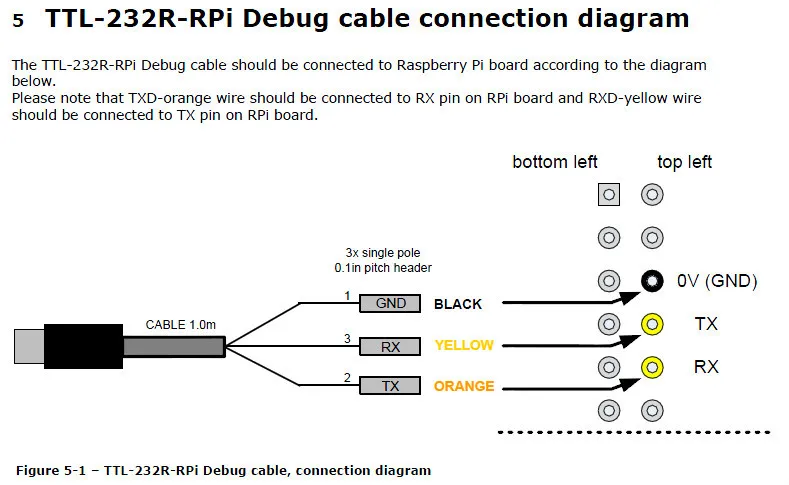

1.TTL-232R-RPi Debug cable provides a USB to TTL Serial interface for Raspberry Pi computer.
2.On board FT232RQ provides single chip USB to asynchronous serial data transfer interface.
3.Entire USB protocol handled by the electronics in the cable USB.
4.Connect directly to a microcontroller UART or I/O pins.
5.UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
6.Fully assisted or X-On / X-Off software handshaking.
7.Data transfer rates from 300 baud to 3 Mbaud at TTL levels.
8.Internal EEPROM with user writeable area.
9.5V safe TTL inputs make the TTL-232R easy to interface to 5V MCU"s.
10.FTDI"s royalty-free VCP allow for communication as a standard emulated COM port and D2XX "direct" drivers provide DLL application programming interface.
11.Support for FT232R FTDIChip-ID™ feature for improved security.

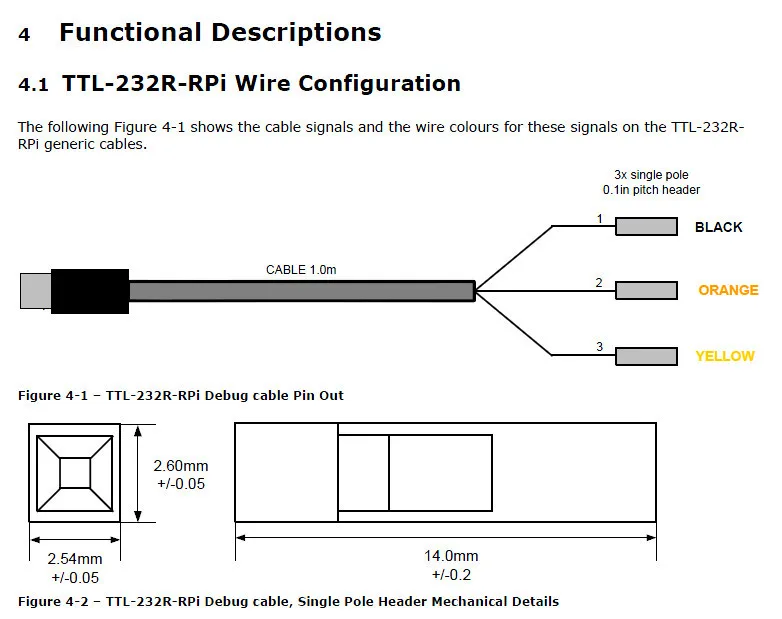

12.3x "flying leads" outputs provide TXD, RXD and GND signals.
13.UHCI / OHCI / EHCI host controller compatible.
14.USB 2.0 Full Speed compatible.
____________________________________________________________________________
Product Specifications:
Type Raspberry Pi Cable,TTL 232R RPi cable (OEM FTDI Cable)
Connector 1 USB A Male
Connector 2 3x "flying leads"
Chipset Used FT232RL or FT232RQ
Cable 3 core, 4 core, 6 core available

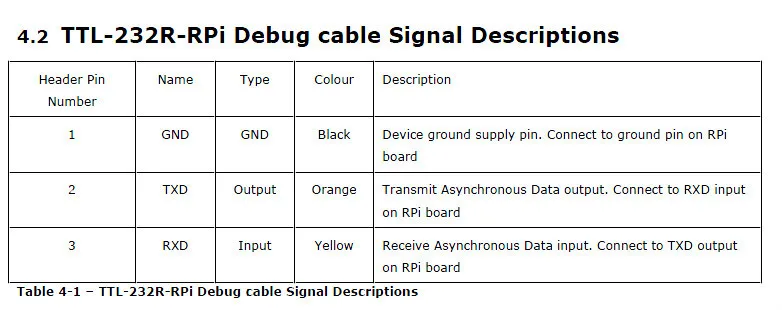

Pinout TXD, RXD, GND
Support WINDOWS7/8/98/ME/2000/XP,Vista32,Mac8.6 or later,LINUX O.S,etc
________________________________________________________________________________________
Electrical:
Quality Control We have a QC director leading all IQC, IPQC, FQC, OQC, SQA, and QE
Insulation resistance 10 OHM min
Conductive resistance 2 ohm max
Voltage DC300V 5M ohm/10ms
Working Temperature -25C-80C
Features:
Debug Cable for Raspberry Pi based on FT232RQ USB to UART Interface Chip
TTL-232R-RPi is a USB to TTL level serial UART converter cables incorporating FT232RQ USB to Serial UART interface ICx device which handles all the USB signalling and protocols. The TTL-232R-RPi is designed for use with the Raspberry Pi (RPi), an ultra low cost, Linux based miniaturised computer. The debug cable sits on the Rx/Tx of the RPi ARM processor UART which provides much more detail of whats happening within the RPi operating system. Connecting the debug cable to a PC and communicating with the RPi via a terminal emulator on a PC gives the user access to more detailed information from the Linux kernel during RPi start up, which appears on the Rx/TX lines of the UART, as well as being able to login and access the kernel itself from the PC.
On board FT232RQ provides single chip USB to asynchronous serial data transfer interfaceEntire USB protocol handled by the electronics in the cable USBConnect directly to a microcontroller UART or I/O pinsFully assisted or X-On / X-Off software handshakingData transfer rates from 300baud to 3Mbaud at TTL levelsInternal EEPROM with user writeable areaLow USB bandwidth consumptionSupport for FT232R FTDIChip-ID feature for improved security3x flying leads outputs provide TXD, RXD and GND signalsUHCI / OHCI / EHCI host controller compatible
FTDI Driver: http://www.ftdichip.com/FTDrivers.htm





Packaging & Shipping
Standard packaging size: 43.5*34*21cm
200pcs in one carton
Customised packing and length based on the quantity
