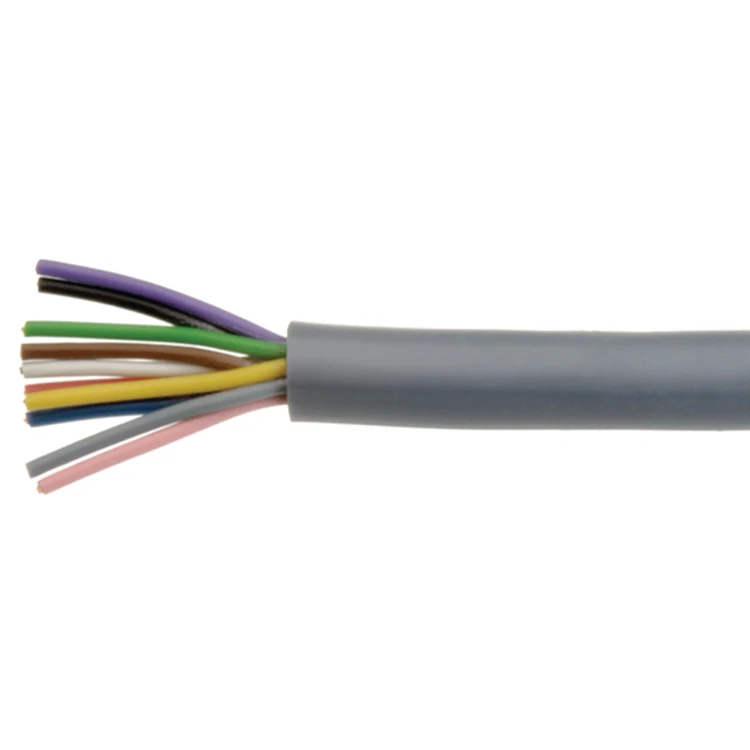

1,5mm2 x 6 PAIR Control Cable
Products Description

Rated voltage:
450/750V
Max. working temperature:
70 C
Insulation:
PVC, LSOH

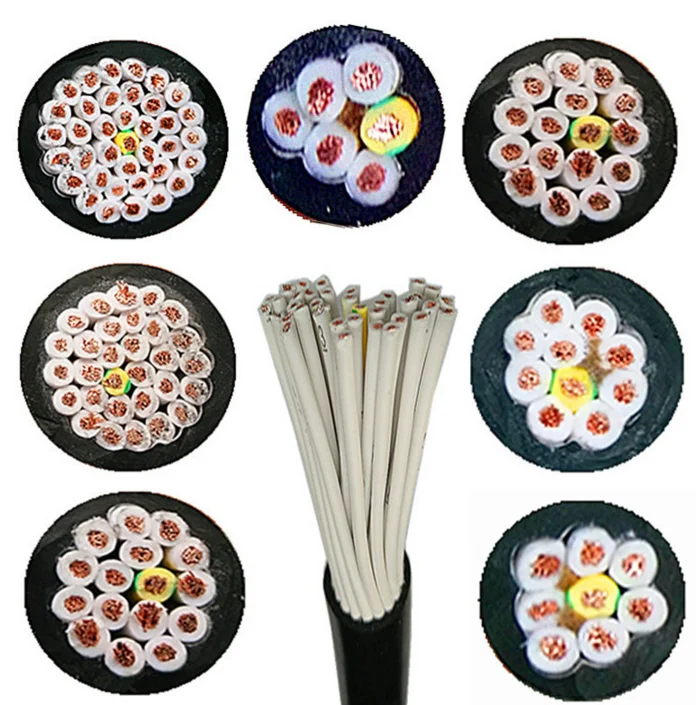

Number of core:
multi-core for this type of cable
Cross sectional area:
2*0.75mm2 to 61*2.5mm2
Quality certificate:
CCC
►Introduction
Control cable is a kind of electrical cable and its each nominal cross section is same. They are featured by insulation material to avoid the current passing through them. They are widely used in the power station and transportation. And the screened feature makes the control cable resist the errosion from the underground and increase the conductivity.►Standard
International: IEC 60502, IEC 60228
China: GB/T 12706.1-2008 GB/T 9330-2008
Other standards such as BS,DIN and ICEA upon request.


►Feature
1, Long-term service temperature of the cable conductor: 70 centigrade.
2, Rated voltage: 450/750V.
3, Cable lying temperature ≥0 cenigrade.
4, Cores: 2, 3, 4, 5, 6,7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, 61.
5, Sectional area:0.75~10mm2.►Application
Used as power and connecting cables in mechanical engineering for tooling machinery, control unit,
production lines, transportation equipment, conveyor and assembly lines as well as in plant construction
under the circumstance that the rated voltage is up to 450/750V AC.
►Service Conditions
1, The long-time working temperature of conductor of PVC insulated cable is 70oC
The long-time working temperature of conductor of XLPE insulated cable is 90oC
2, The temperature for laying the cables cannot be lower than 0oC.Permissible bending radius(r):unarmoured cable:r≥6D;(D: outer
diameter of the cable);armoured or copper-tape screened cable:r≥12D;shielded flexible cable:r≥6D

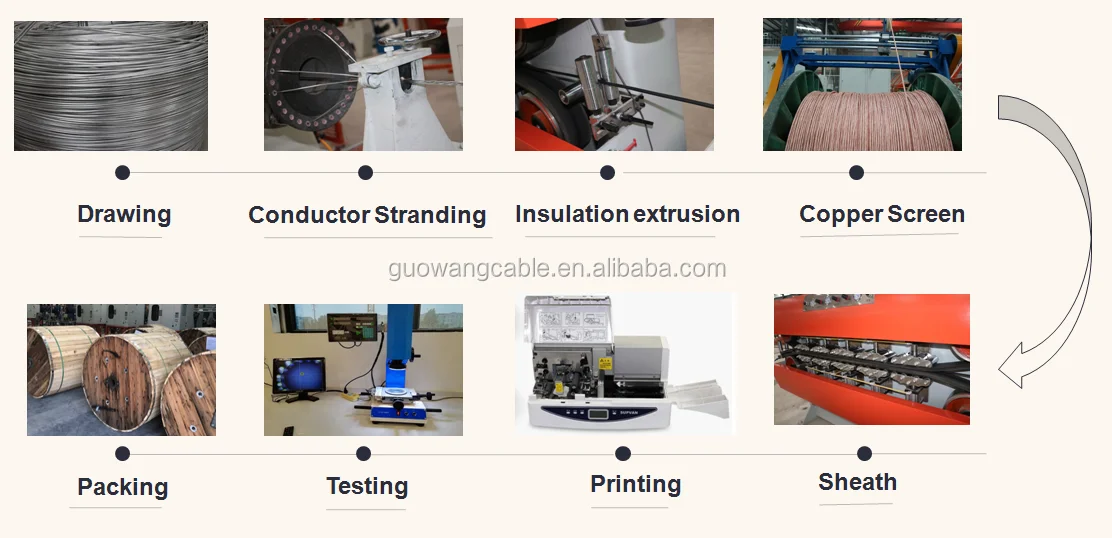

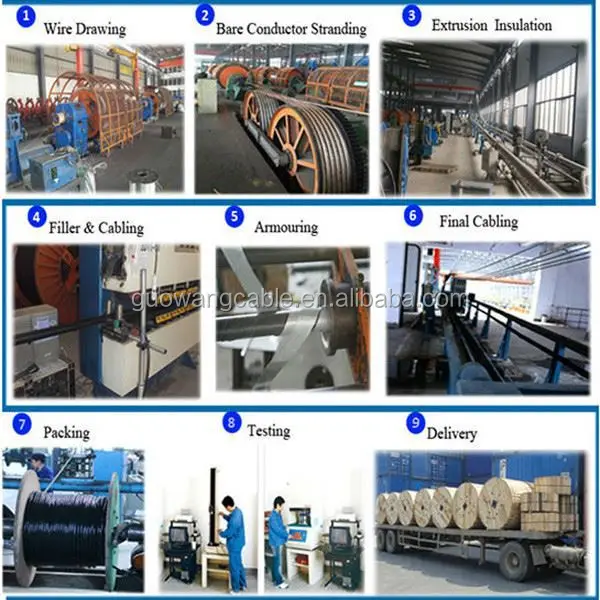

Production Process


Project Cases

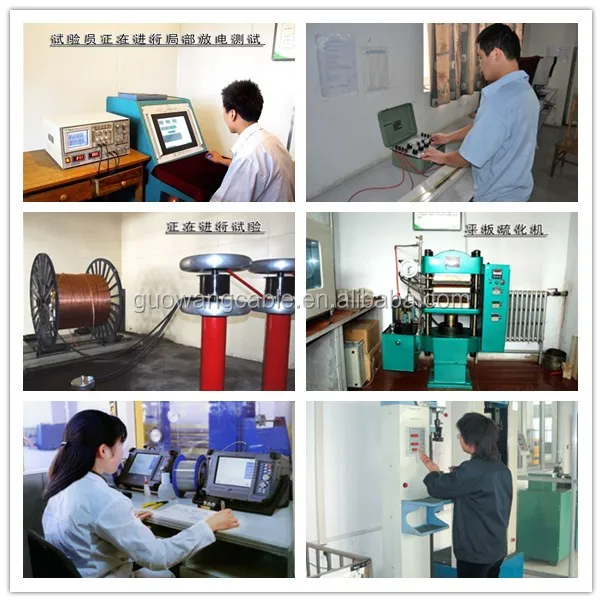

Quailty Control

Our Advantages

Package and Shipment
