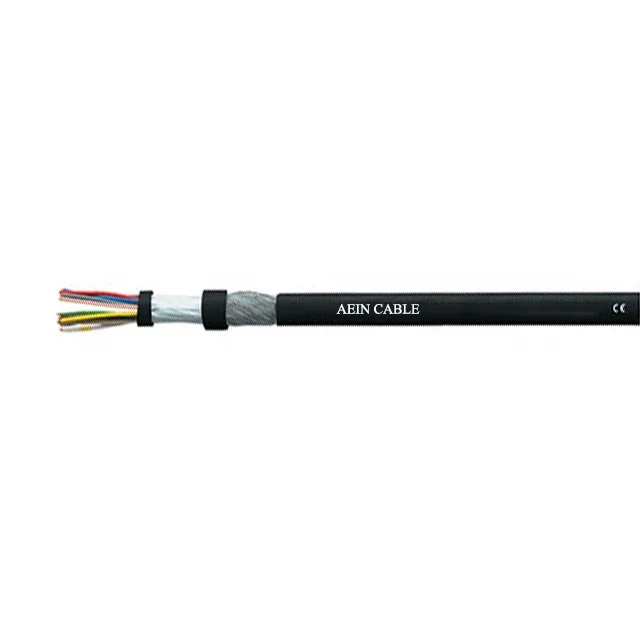

Robot Cable 0.34mm2 TPE insulation PUR sheath Tinned copper screened ( alternative) Torsional Stress Cable
| Technical data | | | |
| Special TPE-E/PUR robot cablE | based on DIN VDE 0250 /DIN VDE 0285-525-1 / DIN EN 50525-1 | | |
| Temperature range | flexing -40C to +80C | | |
| Nominal voltage | up to 0,34 mm² 350 V
from 0,5 mm² U0/U 300/500 V | Test voltage | up to 0,34 mm² 1500 V
from 0,5 mm² 3000 V |
| Insulation resistance | min. 20 MOhm x km
Max. torsion angle
±360/metre | Mutual capacitance | core/core approx. 100 pF/m
core/screen approx. 120 pF/m |
| Minimum bending radius | 15x cable Ø | | |

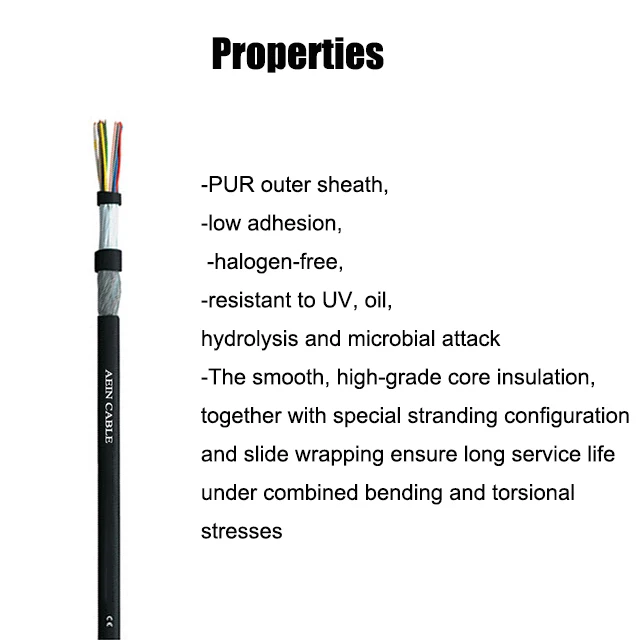

Construction
#Bare copper, stranded to DIN VDE 0295 andIEC 60228, fine or extra fine wires,cl.5 or cl.6, BS 6360 cl.5 or 6,up to 0,34 mm² cl.5, above 0,5 mm² cl.6
#TPE-E core insulation
#Special optimised stranding
#High-grade slide wrapping
#Tinned copper twist screen
#PUR outer sheath
#Sheath colour:grey (RAL 7001) or black
-Part. nos. 77261-77263, 76158, 70561,77267, 77268, 76165, 76166, 77424Core colours DIN 47100
- Part no. 71820, 74658, 77264, 75253,76167Construction as above, but 0,5 (1,0) mm²cores screened with aluminium-coatedpolyester foil
- Part no. 72214Construction as above, but 0,5 mm² pairscreened with tinned twist screen
- Part no. 77265, 77266, 77269, 77270Construction as above, but 1,0 mm² paironly, screened with tinned twist screen
- Part no. 77469Construction as above, but6 cores, 1,5 mm², screened with tinnedtwist screen4 pairs, 0,25 mm², screened with tinnedtwist screenSheath colour:orange (RAL 2003)
Application
# These cables are specially designed for combined torsional and bending stresses. They are employed both for power supply and for the transmission of control and monitoring signals.

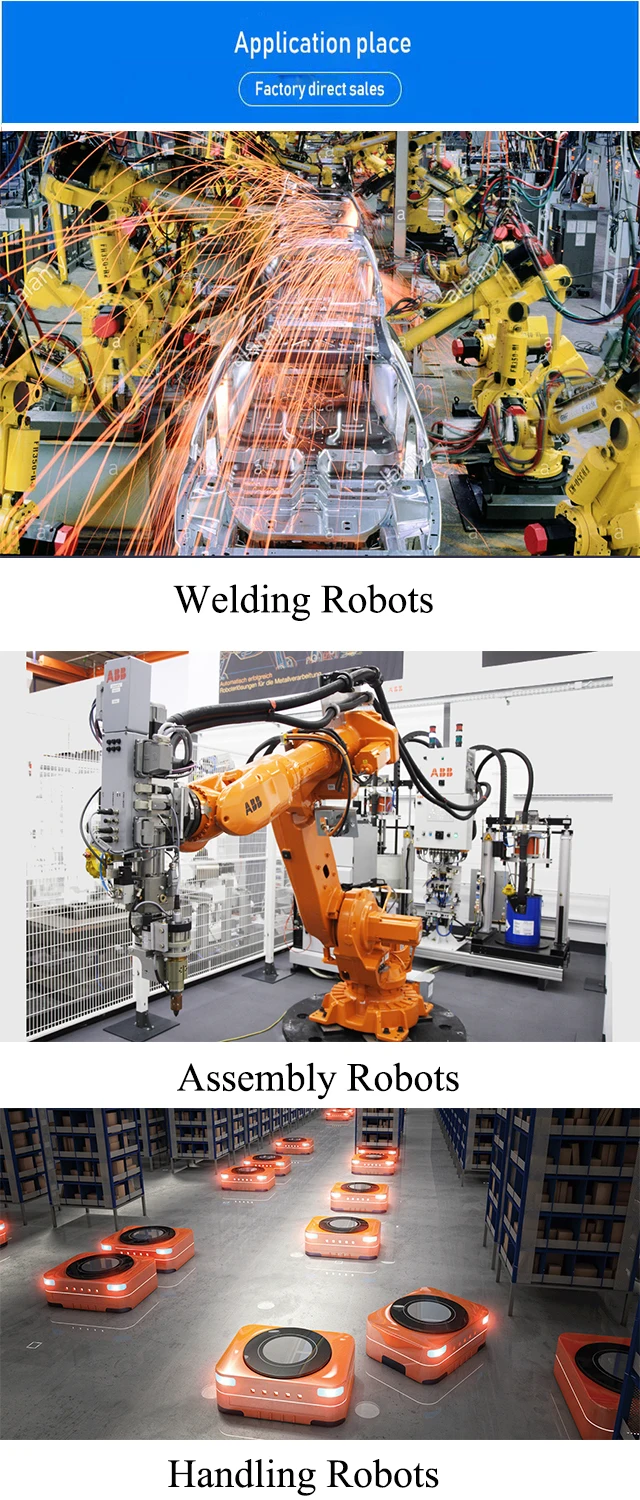

#These cables are used in assembly and welding robots, in handling and automation centres, in transport and conveyor equipment, and on turntables and swivel tables.
