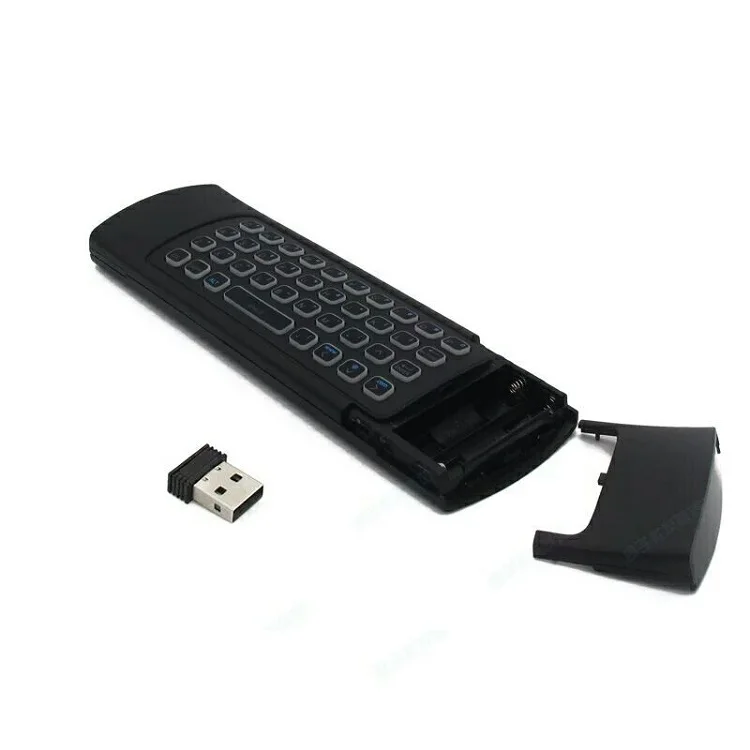

Smart Wireless Android TV Box Remote Control MX3-L Smart Remote Control with High Performance
Product number: AD-81B
Rated working voltage: 3.0V DC
Operating voltage range: 2.4-5.0V DC
Current range: ≤20mA
Transmission distance: >10m
Dimensions: 16 x 4.2 x 0.8 cm
Materials: 100% ABS + rubber
Net weight: 0.1kg
Battery specifications: AAA Battery
Keys: 81 keys
Colors: Customized
Used for: TV/ Smart Box/ Computer Remote Control
What device it used for TV box, smart TV, projector, mini PC, PC computer, Tablet, IPTV
What its type 2.4Ghz wireless (Nano receiver)
Functions Gyroscope air mouse, keyboard, IR remote, IR Learning, IR Copy
Operating range(RF) 10 meters
Operating range(IR) 15 meters
Technology RF, Infrared(IR)
Working current 10mA
Packaging 1pcs in one color box, 100pcs in one carton
Carton weight 14KG
Container 40000pcs or 400 cartons for one 20 container
Product features:
Full keyboard, air mouse and TV remote
2.4G wireless transmission, the distance is up to 10m
Easy pairing and operation
With included USB 2.0 receiver adapter, supports plug-and-play, no need to install software, it is specially designed for Android system to realize human-computer interactions comprehensively
Motion sensor allows mouse to be controlled by waving the remote
Low power consumption, its working power less than 10mA in the working condition without voice
Applicable to smart TV, Android TV box, mini PC, HTPC
Supported system: Linux, Android, Windows, Mac OS X
1. Model number: AD-81B
2. Materials: plastic and silicone
3. Wireless: 2.4G wireless
4. Transmission and control: 2.4G RF wireless radio frequency technique
5. Sensor: 3-gyro + 3-G sensor
6. Amount of key: 81 (the keyboard consists of 38 keys)
7. Control distance: >10m
8. Battery type: 2 * AAA batteries (not included)
9. Working power: less than 10mA in the working condition without voice
10. Standby power: microampere, almost no power, in line with the European "Energy Star" environmental standard
11. Color: black
12. Size: 175 * 53 * 18mm
13. Weight: 98g
14. Packing size: 212*80*30mm
15. Packing weight: 124g

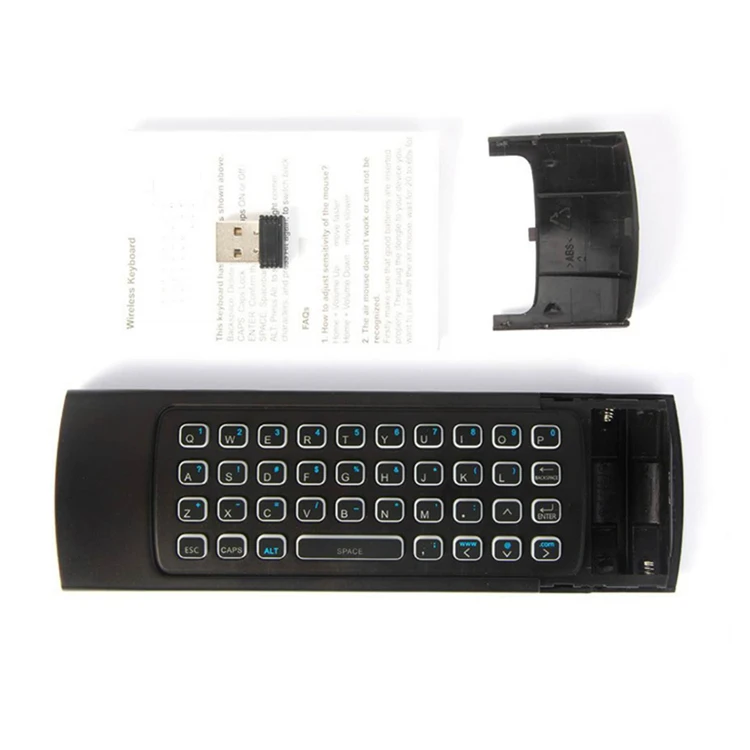

16. Packing list:
(1) 1 * multiple function USB 2.0 2.4GHz wireless remote control keyboard
(2) 1 * USB 2.0 receiver adapter
(3) 1 * user manual
How to use
Insert enclosed dongle into your devices USB port, pairing will be completed once you can see and move mouse cursor on the screen
If pairing was unsuccessful, press the ok button and TV button at the same time
Your device should now be connected
IR learning
There are five buttons which could be programmed to your TV remote keys: top left power button and the bottom four color buttons as showed in product diagram
Be noted your TV remote has to supports NEC protocol for learning
1. Pointing IR emitters of the TV remote and the air mouse to each other
2. Press and hold the TV key on the remote for 4-5 seconds until LED slowly flashes
3. While you see LED slowly flashing, press the key on your TV remote to learn
4. While the IR signal is received to the remote, LED light will turn solid
You will have to choose one of those 5 learning keys
5. Press TV button to finish the learning
Start from step 1 to revise or start a new set up
